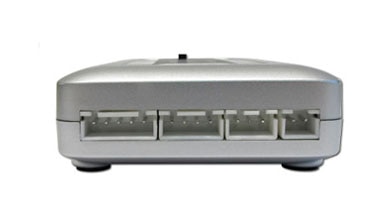

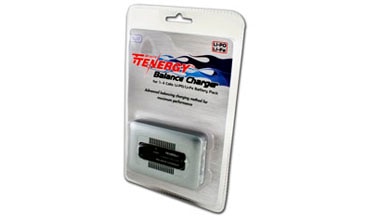

Card: LiPo/LiFePO4 Balance 1A Battery Pack Charger for 1S to 4S w/ Power supply

Item #01267

  • Built-in balancer. Batteries are automatically balanced during charging, ensuring full charge
  • Automatically charging process - makes it easy to use
  • Light weight and attractive aluminum alloy case
  • Safer and faster charging for better battery performance and life
  • Fits 1S to 4S Li-PO/Li-Fe battery packs with XH type balance connector
  • Multiple protection features provide maximum safety
  • Charge Rate: 1A (1,000mah per hour)
  • Powered by an external AC adapter (100-240V AC) for worldwide use
  • Applicable for Li-ion, LiPo and LiFePO4 battery packs
  • Download Manual Here






Cautions:



  • Never attempt to charge 2 battery pack simultaneously

  • Never leave the charger unattended when it's connected to power supply

  • Terminate charging when any malfunction is observed

  • Keep away from dust, damp, water, heat, direct sunshine and vibration

  • Never place it on car seat, carpet or something similar.

  • Always place charger on heat-resistant, non-flammable and non-conductive surface.

  • Do Not charge the following types of battery:

    • Lead acid battery or VRLA

    • NiMH or NiCD battery pack

    • Non-rechargeable battery (explosion hazard)

    • Faulty or damaged battery

    • Any other types except for LiPo/Li-ion/LiFePO4 battery packs






Share

Technical Data
Related Items
  • Type: Charger
  • Model:
  • Cell Size Compatible:
  • Chemistry:
  • Nominal Capacity (mAh):
  • Nominal Voltage (V):
  • Charge Cut-off Voltage:
  • Discharge Cut-off Voltage:
  • Maximum Charge Current:
  • Maximum Discharge Current:
  • Charge Current:
    • Standard:
    • Rapid:
  • Typical Capacity (mAh):
  • Minimum Capacity:
  • Number of Cells:
  • Indicators: LED
  • Charging Indicator:
  • Charging Current: 1.0A
    • AA/C/D:
    • AAA:
    • 9V:
    • USB Output:
  • Maximum Current:
  • Charging Time:
  • End Voltage of Discharge:
  • Typical Discharge:
  • Maximum Discharge:
  • Standard Discharge:
  • Compatible Chemistry: Li-Po/LiFePO4
  • Over Charge Protection:
    • Over Charge Detection Voltage:
    • Over Charge Release Voltage:
    • Rated Current:
  • Over Discharge Protection:
    • Over Discharge Detection Voltage:
    • Over Discharge Release Voltage:
    • Rated Discharge Current:
    • Over Current Detection Current:
  • Input Voltage: DC 10-16V
  • Input Current: 1.5A
  • Charging Voltage Range: 3.7V - 14.8V
  • Rated Charging Current:
  • Trickle Charging Current:
  • LED Indicators:
    • No Battery:
    • Charging: Solid Red
    • Fully Charged: Solid Green
    • Short Circuit:
    • Reverse Polarity:
    • Non-Rechargeable:
  • Bulb:
  • Output Levels:
    • High Mode:
    • Low Mode:
    • Strobe:
  • Battery:
  • Cycle Life:
  • Approx. Length:
  • Approx. Width:
  • Approx. Depth:
  • Approx. Weight:
  • Trickle Mode:
    • AA/C/D:
    • AAA:
  • Timer:
    • AAA/AA:
    • C:
    • D:
    • 9V:
    • –?V auto cut-off for:
  • Temperature Range:
    • Charge:
    • Discharge:
    • Storage:
      • Less Than 30 Days:
      • Less Than 90 Days:
      • Less Than 1 Year:
      • Within 1 Month:
      • Within 6 Months:
  • Safety Features:
  • Casing Dimension:
  • Humidity:
  • Weight: 100g
  • Operating Temperature:
  • Operating Humidity:
  • Storage Temperature:
  • Storage Humidity:
  • Protection Circuit Module:
  • Short Circuit Protection:
    • Short Protection:
    • Release Condition:
  • Interior Resistance:
    • P+, P- Conductive Resistance:
  • Current Consumption:
    • Average Current Consumed:
  • Dimensions: 88mm x 57.3mm x 16.8mm (L x W x H)
  • Included Accessories:
  • Data Sheet
