Technical Data
Related Items
- Type: Cell

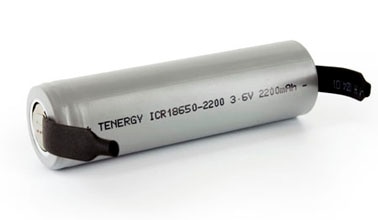

- Model: ICR18650
- Cell Size Compatible:
- Chemistry: Li-ion
- Nominal Capacity (mAh): 2200
- Nominal Voltage (V): 3.6
- Charge Cut-off Voltage: 4.2 V
- Discharge Cut-off Voltage: 3.0 V
- Maximum Charge Current: 1C
- Maximum Discharge Current: 2C
- Charge Current:
- Standard: 0.5C
- Rapid: 0.5C
- Typical Capacity (mAh):
- Minimum Capacity: 2150mAh
- Number of Cells:
- Indicators:
- Charging Indicator:
- Charging Current:
- AA/C/D:
- AAA:
- 9V:
- USB Output:
- Maximum Current:
- Charging Time:
- End Voltage of Discharge:
- Typical Discharge:
- Maximum Discharge:
- Standard Discharge:
- Compatible Chemistry:
- Over Charge Protection:
- Over Charge Detection Voltage:
- Over Charge Release Voltage:
- Rated Current:
- Over Discharge Protection:
- Over Discharge Detection Voltage:
- Over Discharge Release Voltage:
- Rated Discharge Current:
- Over Current Detection Current:
- Input Voltage:
- Input Current:
- Charging Voltage Range:
- Rated Charging Current:
- Trickle Charging Current:
- LED Indicators:
- No Battery:
- Charging:
- Fully Charged:
- Short Circuit:
- Reverse Polarity:
- Non-Rechargeable:
- Bulb:
- Output Levels:
- High Mode:
- Low Mode:
- Strobe:
- Battery:
- Cycle Life: >300
- Approx. Length:
- Approx. Width:
- Approx. Depth:
- Approx. Weight:
- Trickle Mode:
- Timer:
- AAA/AA:
- C:
- D:
- 9V:
- –?V auto cut-off for:
- Temperature Range:
- Charge: 0°C ~ 45°C
- Discharge: -20°C ~ 60°C
- Storage:
- Less Than 30 Days:
- Less Than 90 Days: -20°C ~ 45 °C
- Less Than 1 Year: -20℃~ 25 °C
- Within 1 Month: -20°C ~ 60 °C
- Within 6 Months:
- Safety Features:
- Casing Dimension:
- Humidity:
- Weight: 46g
- Operating Temperature:
- Operating Humidity:
- Storage Temperature:
- Storage Humidity:
- Protection Circuit Module:
- Short Circuit Protection:
- Short Protection:
- Release Condition:
- Interior Resistance:
- P+, P- Conductive Resistance:
- Current Consumption:
- Average Current Consumed:
- Dimensions: Max. 18.4 x 65.1mm (D x H) (not include the tabs)
- Included Accessories:
|
|
|
|
